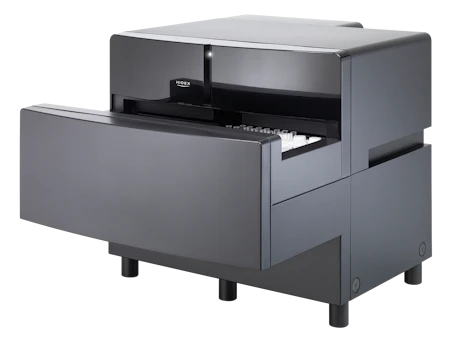

Hidex Automatic Gamma Counter

AMG dedicated to nuclear medicine and PET

Hidex automated gamma counter with modern approach and convenience for nuclear medicine and PET applications. With our onboard balance, samples can automatically be weighed and results reported as activity per mass. This saves the operator valuable time and provides additional safety of correct results.

Device Parmeters

AMG dedicated to nuclear medicine and PET

Automatic gamma counter for nuclear medicine and preclinical research

With our touchscreen operated software and application focused design we guarantee effortless work flow with results simply at your fingertip. The software provides full energy spectrum storage and data exporting into user definable location. It is always ready to be used with minimal manual setup.

Sophistication for radiation protection

The 3 inch NaI crystal provides superb counting efficiency. Optimized lead shielding ensures low background and minimal interference from high active samples waiting to be counted. Hidex automatic gamma counter is also equipped with a powerful multichannel analyzer for detailed spectrum analysis with the possibility of measuring up to 4 MeV.

Optional features:

Sample Balance

2D vial ID reader

21 CFR part 11 security support software

Extended MCA for high energy isotopes

Technical Specification

Sample capacity	Ø13mm max 230 pcs. and Ø 28 mm max 72 pcs
Detector type	3 inch well type NaI detector
Counting efficiency (isotope peak window)	Cs-137 18%, I-129 58%
Energy range	15-2000 keV
Lead shield thickness	55 mm with up to 80 mm on conveyor side
Dimensions, W/D/H (cm)	62/70/60 with balance 62/83/60
Weight	198 kg (w/o balance) 205 kg (with balance)
Power requirement	100-240 V / 50-60 Hz
Balance	Sartorius analytical grade balance

Our Advantages

Stable performance

Stable performance is a symbol of quality, which can withstand repeated testing and long-term testing, bringing peace of mind and trust to users.

Advanced Technology

Advanced technology leads to higher efficiency, better performance, better user experience and lower costs.

Functional Excellence

It represents the perfect pursuit of product design and implementation, a perfect combination of quality and innovation, and can bring users a richer and more efficient experience.
